Full-Scale Testing, Global Compliance
Our EMC Chambers are engineered to provide optimal environments for electromagnetic compatibility (EMC) testing, ensuring your devices meet international standards for electromagnetic interference (EMI) and electromagnetic susceptibility (EMS). Whether for R&D, compliance testing, or pre-certification, our chambers offer unparalleled precision and reliability.

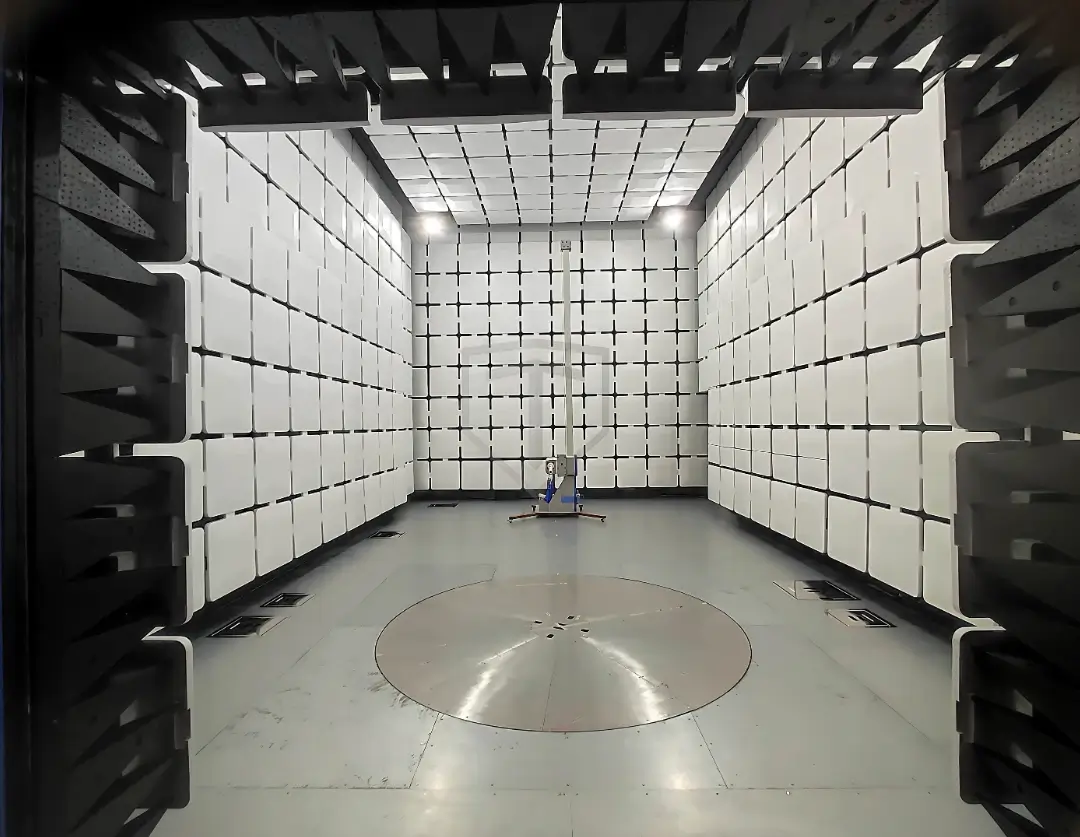

The 10-meter test range represents the Gold Standard in EMC testing. It allows for comprehensive emissions testing and immunity testing, making it perfect for larger EUTs while delivering top-tier performance. Our 10-meter chambers are specifically designed to create an ideal setting for measuring radiated emissions and radiated immunity. This versatile and adaptable test chamber can fully comply with all Commercial, Automotive, Military, and Avionic testing procedures.
| Item Description | Type |
| Dimensions (L*W*H) | 20 * 12 * 8.5 |
| Test Standard | Full compliance according to CISPR 16-1-4 and IEC 61000-4-3 |
| Frequency | 9KHz – 18GHz (optional 40GHz) |
| Test Distance | 1m, 3m, 5m, 10m |
| Quiet Zone (Dia) | 3m / 4m |
| Turn Table | Accuracy - 0.5 step & High-Precision Rotation - 360degree |
| NSA | +/-4 db |
| SVSWR | 6dB |
| NSIL | +/-4dB |
| Item Description | Test Standard | Frequency |
|---|---|---|
| Shield Effectiveness | IEEE-299 / EN 50147-1 | 9kHz – 18GHz |
| NSA | CISPR 16-1-4 | 30MHz - 18GHz |
| SVSWR | CISPR-16-1-4 | 1MHz-18GHz |
| NSIL | CISPR-16-1-4 | 9kHz – 30GHz |
| Field Uniformity | IEC 61000-4-3 | 80MHz - 18GHz |
| Category | Test Standard | Equipment Under Test |
|---|---|---|
| EMISSION | CISPR 11 | Industrial, scientific, and medical (ISM) equipment. |
| CISPR 14 | Household Appliance And Electric Tools | |
| CISPR 15 | Electrical lighting and similar equipment. | |
| CISPR 22 | Information Technology Equipment | |
| CISPR 32 | Multimedia equipment. | |
| FCC 15 & 18 | RF Devices, ITE & ISM instruments | |
| IMMUNITY | IEC/EN 61000-4-3 | Information Technology Equipment |
Ferrite Tiles & Absorbers – The walls and ceiling of the test chamber are meticulously outfitted with cutting-edge gapless Hybrid Pyramid absorbers and Ferrite tiles. These Pyramidal absorbers are carefully engineered to facilitate a seamless transition from the exceptional performance of the Ferrite tiles at lower frequencies to the Pyramidal absorbers at higher frequencies.
Hybrid absorbers, in contrast to microwave absorbers, utilize a ferrite underlayer and are an established solution for both semi and fully anechoic chambers tailored for EMC testing applications. The patented design provides the EMC absorber with numerous benefits compared to other options. They serve as an excellent alternative to foam absorbers!
Shielding Effectiveness is the cornerstone of reliable EMC testing. It ensures that electromagnetic chambers provide a controlled, interference-free environment necessary for accurate and repeatable measurements. By isolating test setups from external noise and preventing internal signal leakage, SE upholds the integrity of test results, supports compliance with industry standards, and enables the development of robust, interference-resilient technologies. Tekiknow Chamber provides a Shield effectiveness of 100dB, with a performance Chamber reaching 110 dB. This performance Chamber is typically utilized in high-performance applications and specific high-frequency requirements.
“Tekiknow Technologies specializes in EMI/EMC and RF shielding solutions with a focus on innovation, quality, and sustainability. We deliver reliable, customized solutions tailored to your needs.”
